Anti-Reflective PRODUCTS >> Anti-Reflective

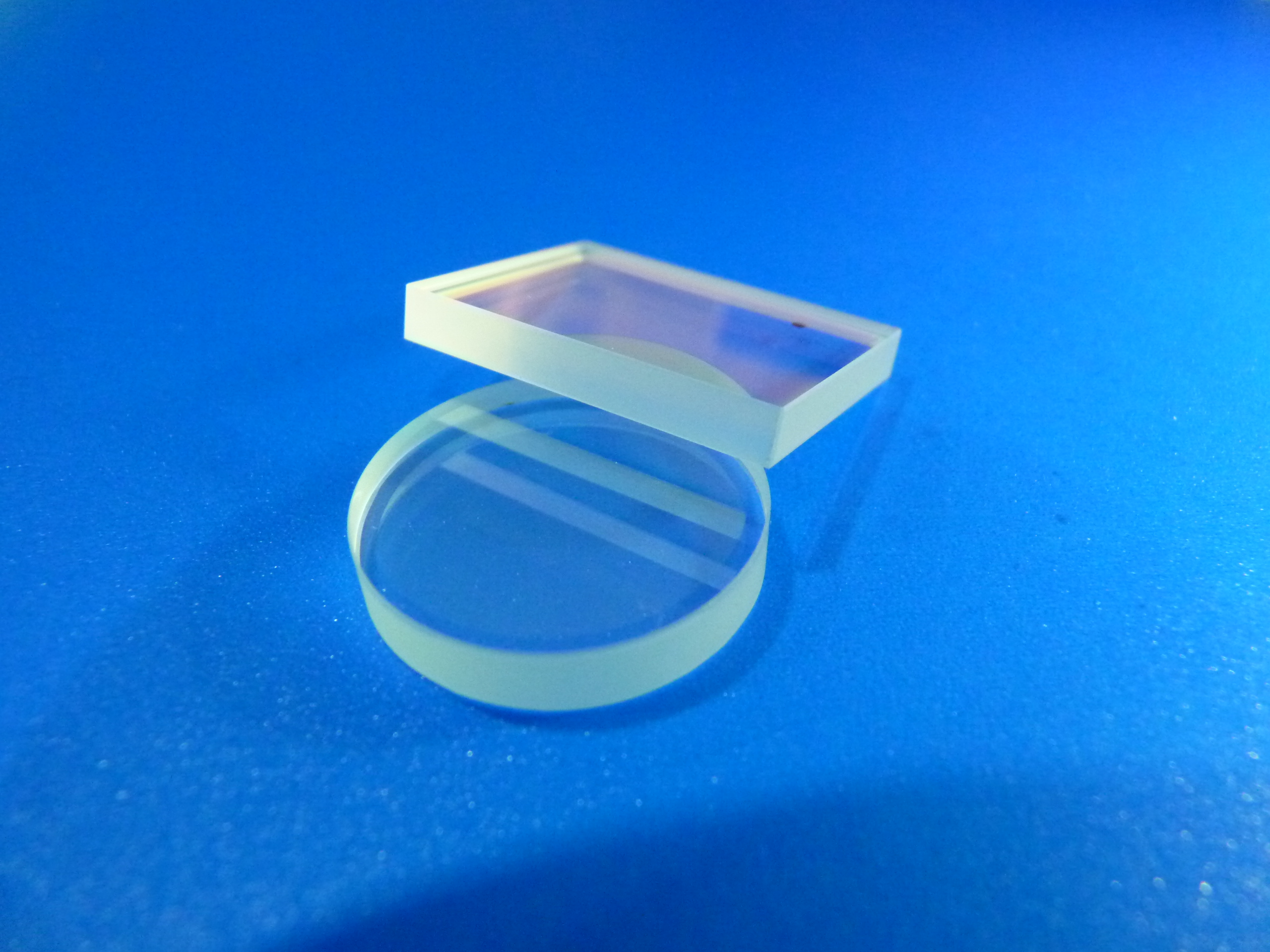

Broad Band AR Coating (BBAR)

Anti-Reflective Coating (AR), means to reduce the absorption or reflective of the light when get through the optical parts. normally PHYO offer the MgF AR coating, Multi-layer AR, and Broad band AR (BBAR). Single wavelength, Dural Peak, V type still available for the AR coating.


In order to get a flat response over a certain spectral range, some of the optical system needs to be coated with broadband antireflective coating. The BBAR high in efficiency at more than one wavelength.

Substrate Material: H-K9L, Fused Silica, Sapphire or similar
Incident angle : 0°<AOI<15°
Designed Wavelength range : 350nm < λ < 2400nm
Normally R<2% can be reached, some case R<0.9% workable.
Singed sides, double sides available.
Customized coating available.
