Reflective Coating PRODUCTS >> Reflective Coating

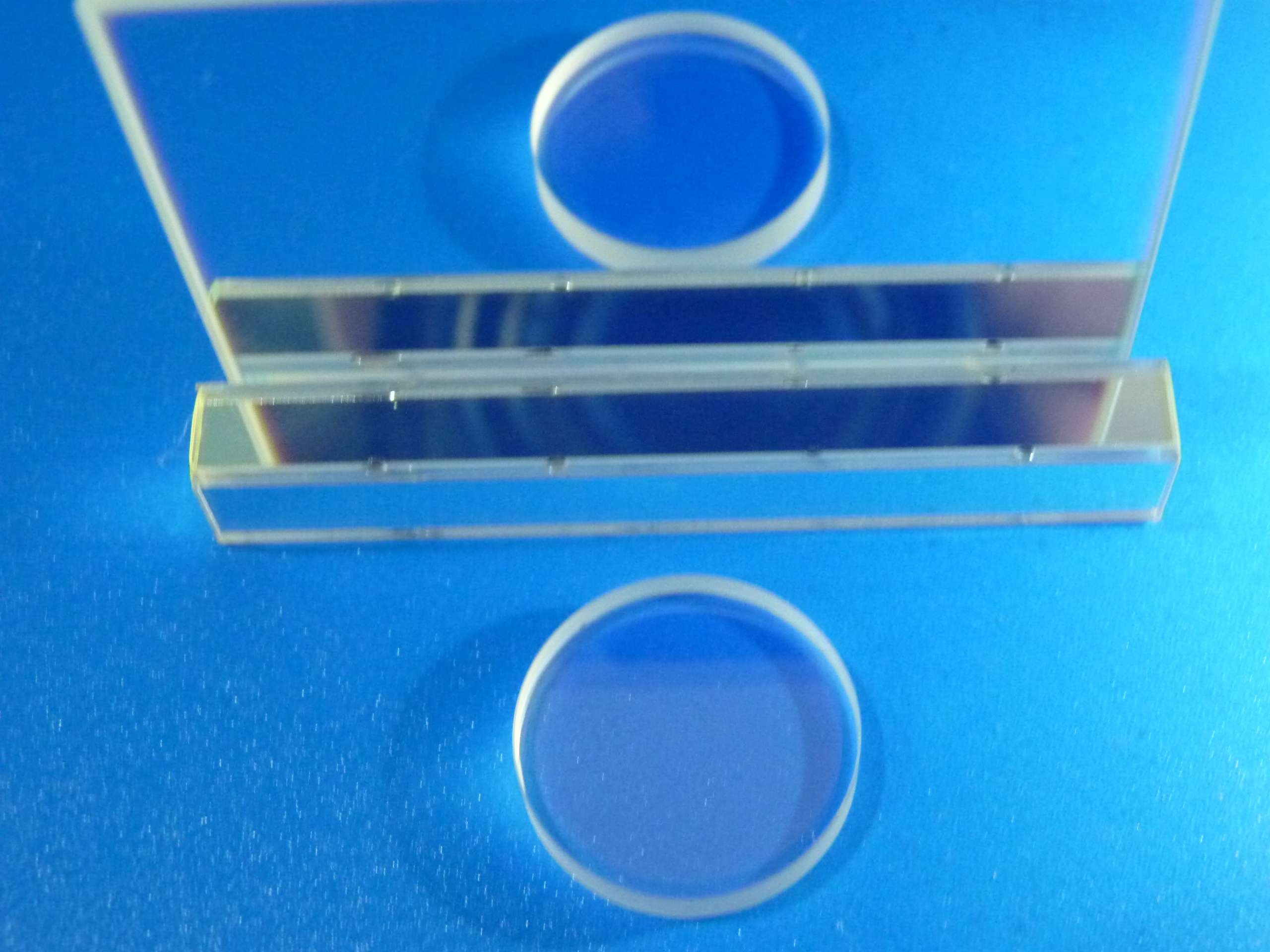

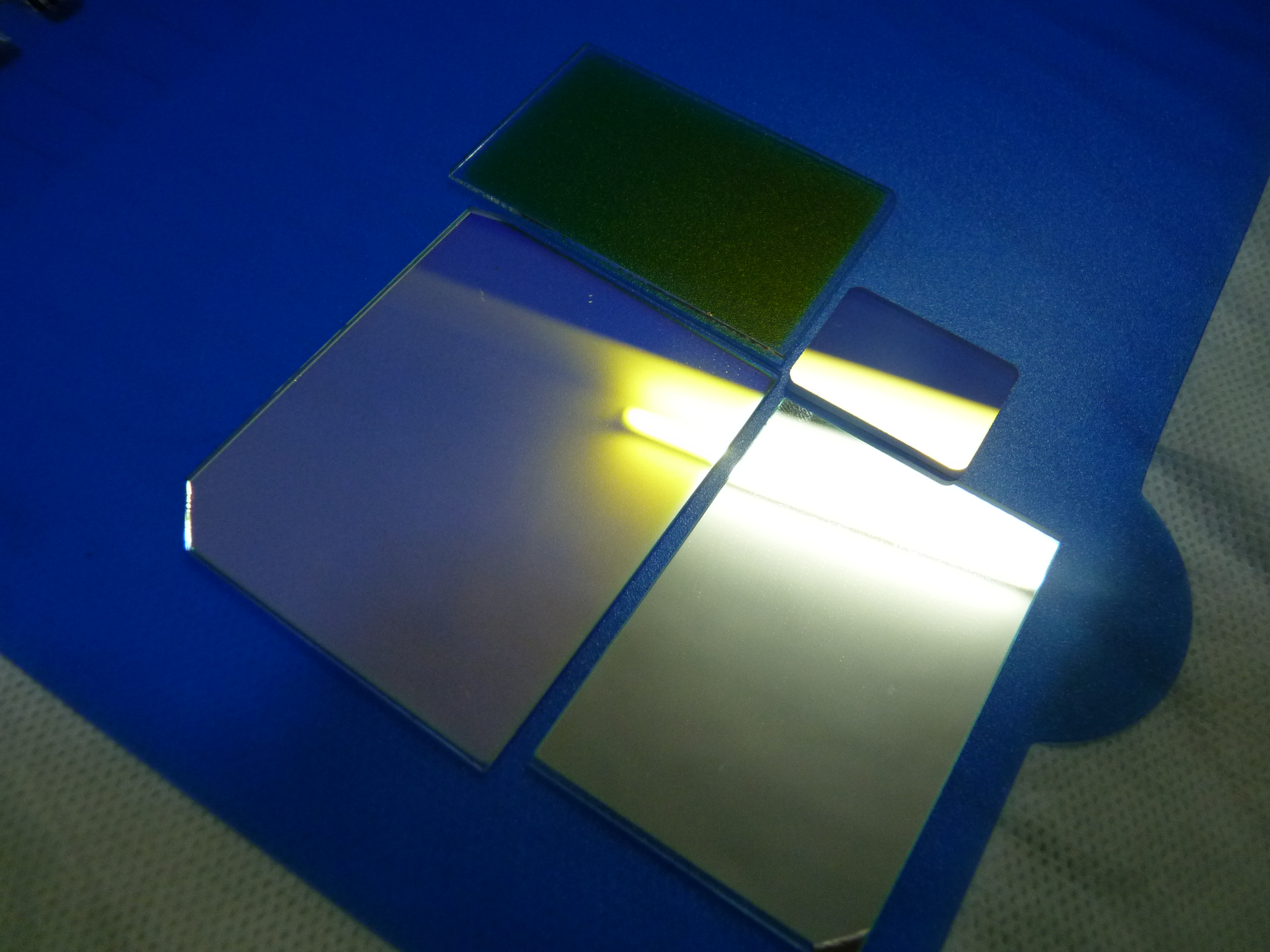

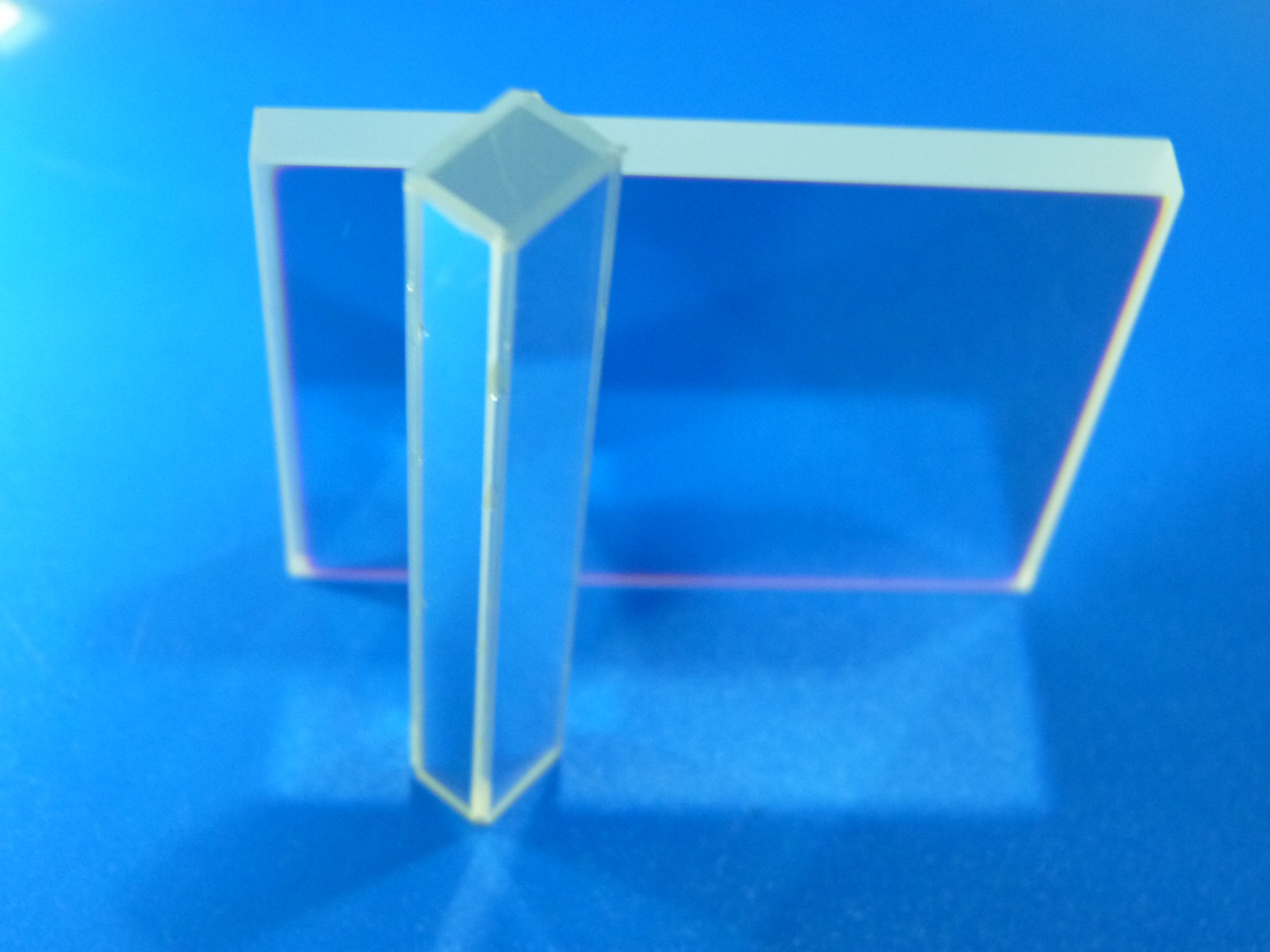

HR Coating

High reflective coating, with a high reflection of the wavelength, it can be applied outside of the components, they can be used as internally or externally reflection. Most of the optical systems needs some HR mirrors to guide the light directions.


Substrate Material: H-K9L, Fused Silica,  or similar
Incident angle : 0°<AOI<45°
Designed Wavelength range : 400nm < λ < 1100nm
Normally R<0.2% can be reached at a certain wavelength
Singed sides, double sides available.
Customized coating available.
