Other Coating Types PRODUCTS >> Other Coating Types

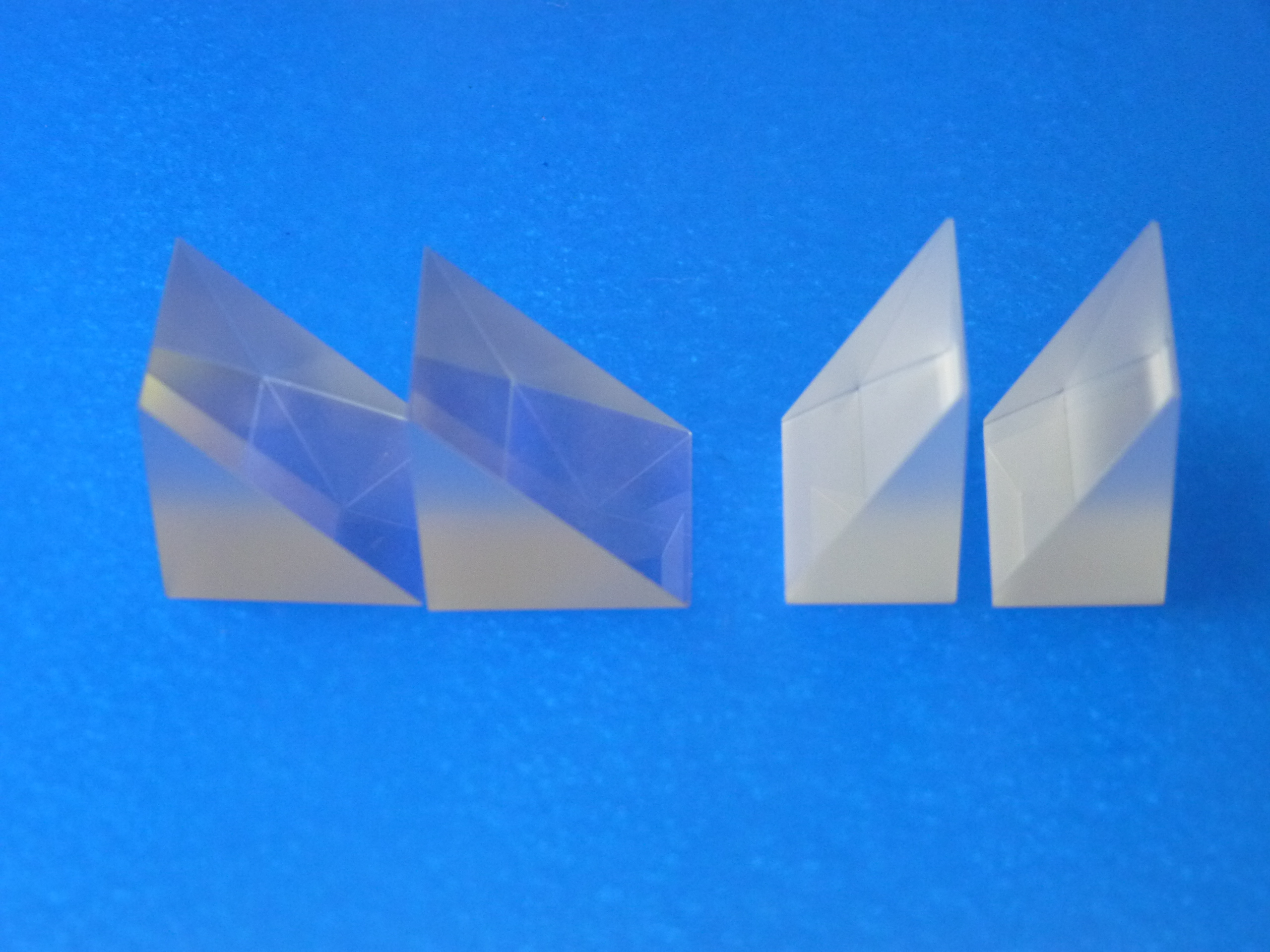

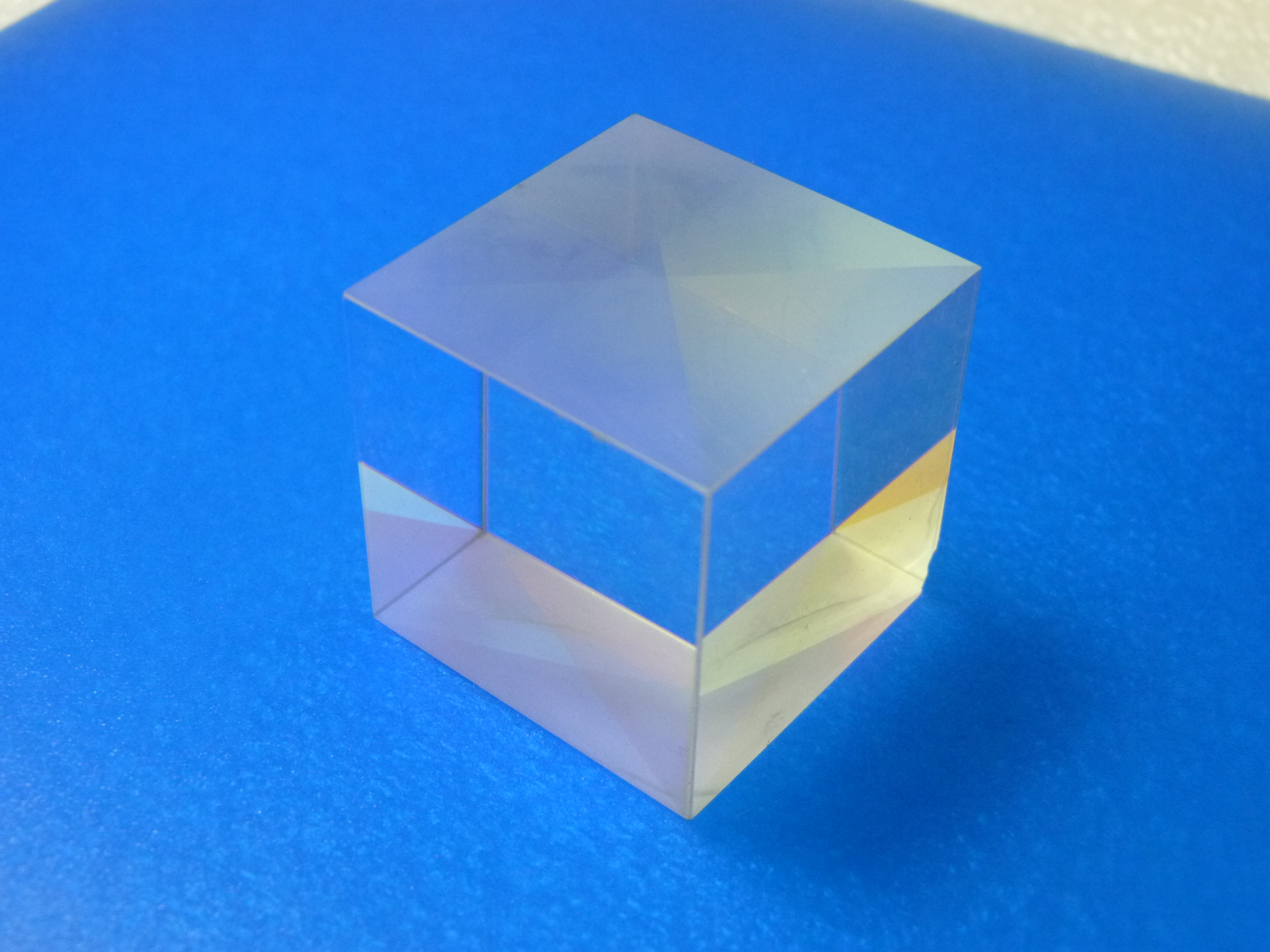

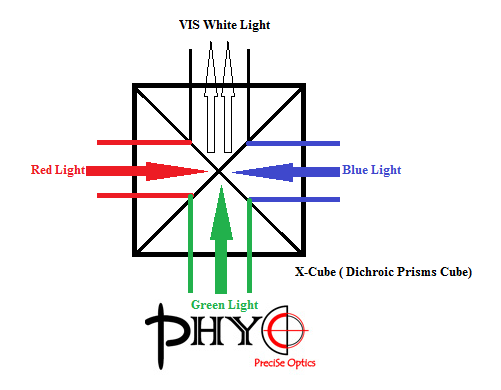

X-Cube,also called as Cross Dichroic Cube Prisms, which is cemented by 4 right angle prisms. It is used for combining the R, G, B three colored beams to some colored image. Mainly used in the projectors.


Material Fused Silica, N-BK7, H-K9L, Corning HPFS
Size Range Traditionally as 20*20 or 25*25mm
Diameter Tolerance +0.1/-0.1 to +/-0.05
Angle Tolerance +/-30sec
Polishing Customerized polishing surface
Flatness 2L - L/4
Surface quality 40-20
Clear Aperture 95% of the surface

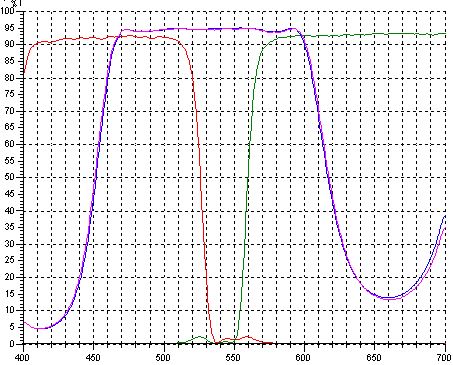

Coating For VIS 400-700nm
