Prisms PRODUCTS >> Prisms

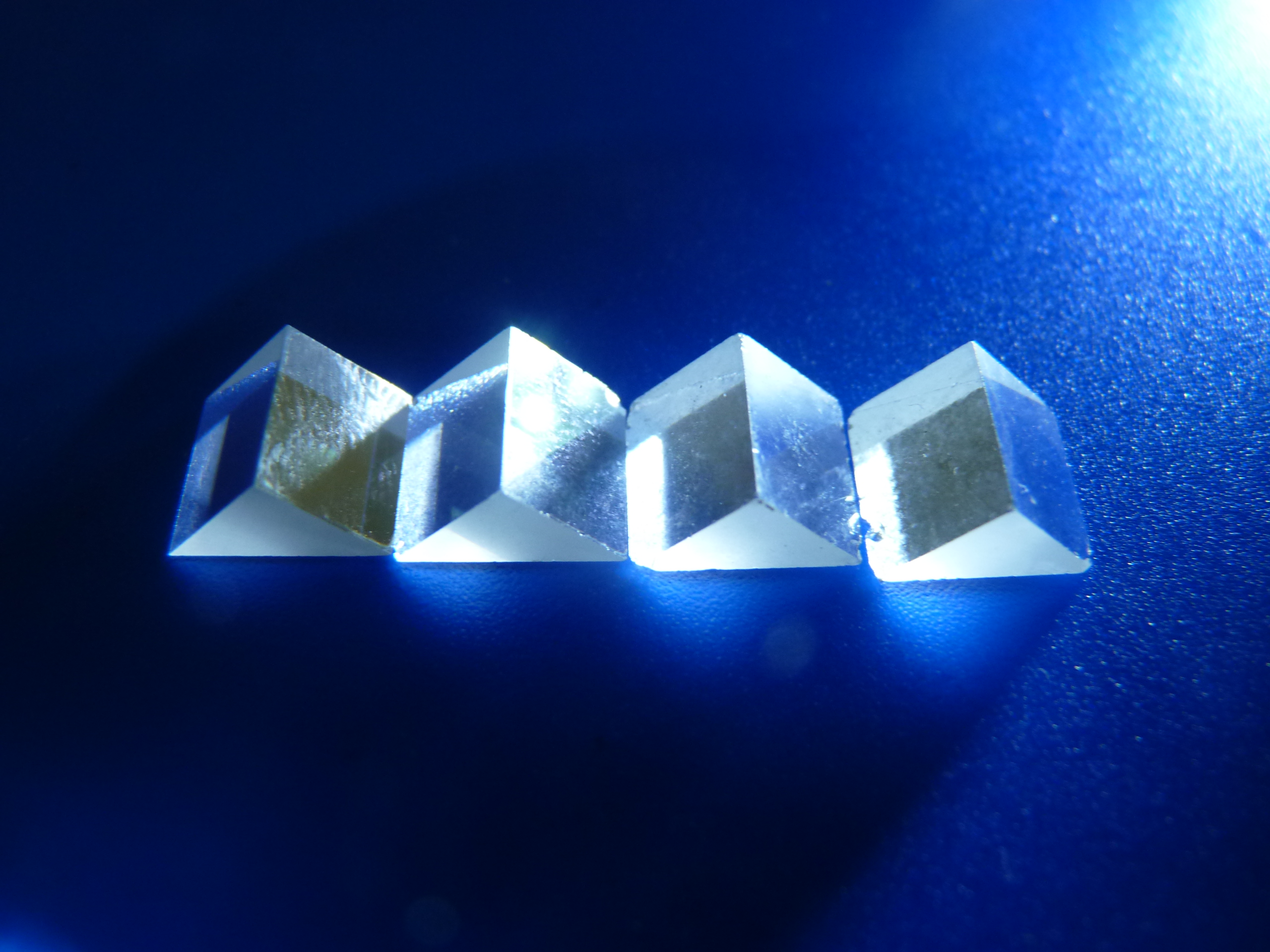

Right Angle Prism
Right Angle prisms used for deviation image or beam by 90degree or 180degree, normally material can be Fused Silica, H-K9L, CaF2, Ge, Znse, etc. Optional coating can be Anti-reflective, High-reflective with some painting.
Application
Telescope
Optical assembly system
Optical display system


Spec Commercial High Precision
Material As required like H-K9L,BK7,FS As required like H-K9L,BK7,FS

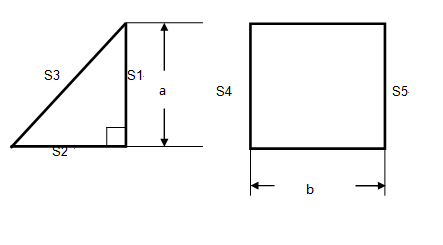

Demension Tolerance +0.00/-0.20 +0.00/-0.10
90degree daviation tolerance 1-3arcmin 10/-10arcsec
45degree daviation tolerance 20/-20arcsec 3/-3arcsec
Flatness per 25mm@632.8nm L-L/2 L/4-L/8
Surface quality 80-50 40-20
Bevel 0.05-0.2 0.05-0.2
Coating AR, HR, Painting available AR, HR, Painting available
